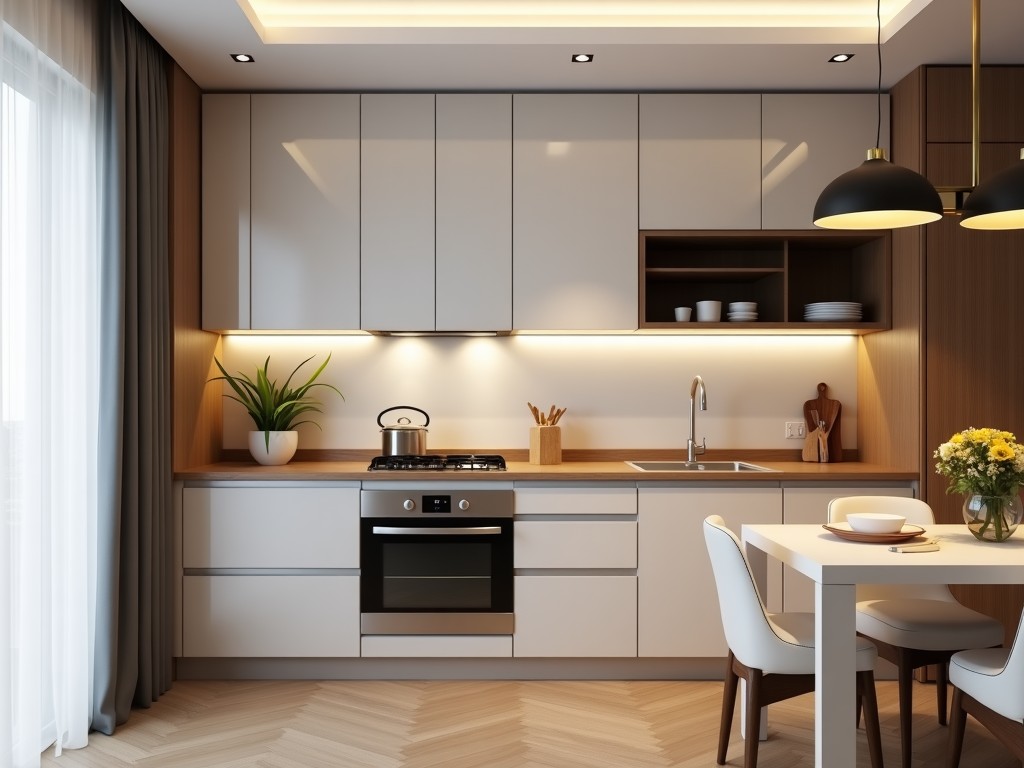

Custom Kitchen Wall Cabinets Factory

We produce wall-mounted cabinet units designed for commercial kitchen environments where load-bearing performance, moisture resistance, and precise fit are critical. Each unit is built to project‑specific dimensions using CNC‑cut panels and automated edge‑banding to maintain tight tolerances.

Material Selection and Construction

Core panels are 18 mm thick medium‑density fiberboard (MDF) with a moisture‑resistant additive, providing a density of approximately 700 kg/m³ and a swelling rate below 5 % after 24 h water exposure. Door frames use the same MDF core, overlaid with a 0.3 mm PVC laminate that meets ISO 4586‑2 for chemical resistance. Shelves are 16 mm particleboard reinforced with a steel stiffener strip to achieve a uniform load capacity of 150 kg per shelf.

Dimensional Customization Capabilities

Cabinet geometry is adjusted to match wall stud layouts, appliance clearances, and ergonomic reach zones. The following parameters can be specified:

• Width: 300 mm to 1200 mm in 1 mm increments
• Height: 500 mm to 900 mm (standard) or up to 1500 mm for tall units
• Depth: 300 mm (standard) or 350 mm for increased storage
• Overlay options: full overlay, half overlay, inset
• Reveal gaps: 2 mm, 3 mm, or custom
• Shelf spacing: adjustable in 25 mm increments

Manufacturing Process and Tolerances

Panels are cut on a 5‑axis CNC router with a positional accuracy of ±0.1 mm. Edge banding is applied via hot‑melt adhesive at 180 °C, achieving a peel strength of ≥1.5 N/mm. Hinge cups are bored using a multi‑spindle drill press to a depth tolerance of ±0.2 mm, ensuring consistent door alignment. Final assembly uses cam‑lock connectors and confirming screws, with a torque specification of 2.0 Nm to prevent joint creep.

Quality Assurance and Testing

Each batch undergoes a three‑stage inspection: (1) dimensional verification using a coordinate measuring machine (CMM) against the CAD model, (2) adhesion test of edge banding per ASTM D903, requiring a minimum force of 1.2 N/mm, and (3) load test where shelves are subjected to 125 % of rated capacity for 24 h with deflection limited to 2 mm. Surface finish is evaluated for gloss uniformity (≥80 GU) and absence of orange‑pea defects.

Typical Specifications

Parameter	Typical Value	Customizable Range
Panel Thickness	18 mm	16 mm – 22 mm
Door Style	Flat slab with PVC laminate	Shaker, raised panel, glass insert
Hinge Type	Concealed soft‑close, 110° opening	100°, 120°, push‑to‑open
Shelf Load Capacity	150 kg uniformly distributed	100 kg – 250 kg (with stiffener)
Finish	Matte PVC, 80 GU gloss	High gloss, textured, UV‑coated
Edge Banding	0.3 mm PVC, hot‑melt	0.5 mm ABS, veneer, metal
Standard Height	720 mm (including toe kick)	500 mm – 1500 mm

Applications in Commercial Kitchens

In restaurants, hotels, and institutional food‑service facilities, wall cabinets must endure frequent cleaning cycles, exposure to steam, and occasional impact from carts. The moisture‑resistant MDF core prevents swelling that could misalign doors, while the PVC laminate resists staining from oils and acidic food residues. The concealed hinges reduce crevices where debris can accumulate, supporting compliance with NSF/ANSI 2 sanitation standards. Custom depth options allow designers to align cabinets with exhaust hoods or shelving systems, improving workflow ergonomics.

FAQ

• Can dimensions be customized? Yes, width, height, depth, and reveal gaps are adjustable in 1 mm increments.
• What information is required before quotation? We need a layout sketch or DXF showing cabinet locations, required clearances, and any special features such as glass doors or lighting cut‑outs.
• What materials are available? Standard is moisture‑resistant MDF with PVC laminate; alternatives include marine‑grade plywood, stainless‑steel cladding, or fire‑rated particleboard.
• How is quality inspected? Each unit undergoes CMM dimensional verification, edge‑band adhesion testing, and shelf load deflection checks as described in the Quality Assurance section.
• What packaging methods are available? Cabinets are packed in flat‑pack kits with corner protectors, stretch film, and palletized for FCL shipment; optional foam corner cushions and vacuum‑sealed moisture barriers are available.
• How are export shipments protected? Pallets are strapped and covered with waterproof tarps; container loading uses shock‑absorbent dunnage to limit vibration.
• What is the typical production lead time? Lead time ranges from 15 to 25 working days after drawing approval, depending on order complexity and current shop load.
• How are samples arranged? We can ship a single‑unit sample (fully finished) via express courier; sample cost is credited against the first order.

Request a Quote

To begin a project, provide your layout drawings, material preferences, and required quantities. Our engineering team will review the specifications and return a detailed quotation with lead‑time and packaging options.
